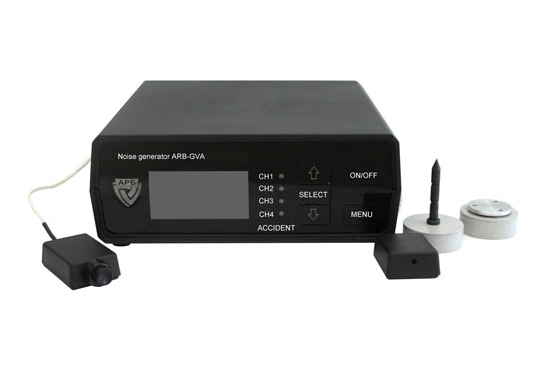

Vibroacoustic system of voice information protection "ARB-BA"

Vibroacoustic system of voice information protection "ARB-BA"

Certificate of the Operative Analytical Centre of the Presidential Office of the Republic of Belarus No. BY/112 02.01.036 00033 (valid till 21.05.2019)

Vibroacoustic system of voice information protection "ARB-BA" is designated for the prevention of voice information leakage out of the protected object via acoustic and vibroacoustc channels by means of generating adjustable masking acoustic and vibroacoustic noise in air, protective structures and utilities. The application area of the system is to protect confidential voice information, including official restricted information or state secrets related as such in accordance with the established procedure.

Main characteristics and parameters

 Parameter (characteristic)

 Value (rate)

 Primary noise source

 Transistor (transmission "emitter-base")

 Number of channels that generate masking interference

 4

 Frequency range of generated interference

 175...8000 Hz

 Inequality of noise level spectrum density in octave bands 250/500/1000/2000/4000 Hz

 Not more than ±dB

 Type of masking interference

 "White" noise or combined: "voice-like" interference + "white" noise

 Entropic coefficient of the quality of the distribution of "white noise" signal envelope

 Not less than 0,8 (in relation to Rayleigh distribution)

 Nominal integrated output power of masking interference at load of 4 Ohm

 Not less than 4 W in each channel

 Noise signal control range in octave bands 250/500/1000/2000/4000 Hz

 Not less than ±10 dB in each channel

 Buoyancy of vibration emitters

 Not less than 0,1 N

 Sound pressure at distance of 1 m from acoustic emitter

 Not less than 70 dB (respectively to 20 micro Pascal)

 Sound pressure adjusting range

 ±20 dB

 Continuous operation duration    Not less than 8 hours

 Not less than 8 hours

 Electric power supply

 220 V-15%+10% and frequency 50Hz ± 1 Hz

 Electric power consumed by the system

 Not more than 35 W

 Load capacity of one channel

 Up to 12 emitters
