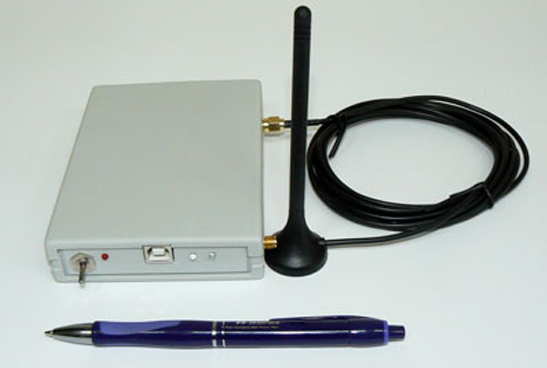

Radio electronic data collection unit of mobile networks ARB-BSR
Designation
Radio electronic data collection unit of mobile networks represents a mobile gadget to the PC and is designated for operative evaluation of radio electronic data at the setup site of “ARBALETTO” system. It provides to determine the presence of signals from base stations of mobile network at this site, its belonging to specific operators, frequency bands and signal levels from them. Using the external GPS antenna, the location of radio electronic data collection is additionally recorded. The collected datacan be stored on the PC for subsequent processing in the form of tables or on the cartographic basis, for orientation on the terrain.
Main technical characteristics and parameters
|
Frequency ranges |
900/1800/2100 MHz |
|
GРS module |
Available |
|
Measured parameter of standard UMTS (WCDMA 2100) |
- Information about Operator – MccMnc (Operator Name) - Information about frequency band of collection unit - Level of receiving signal of collection unit - Collection unit identifier (Cell ID) in the local zone (LAC) and its status |
|
Measured parameters of standard GSM (900/1800)
|
- Information about Operator – MccMnc (OperatorName) - Information about frequency band of collection unit - Level of receiving signal of frequency link of collection unit - Collection unit identifier (Cell ID) in the local zone (LAC) and its status |
|
Range scanning time |
Not more than 2 minutes |
|
Power supply |
From PC via USB |
|
Unit dimensions |
125х95х25 mm. |
|
Weight |
|
|
Operating temperature |
–20...+ |
