JSC «KB Radar» is presenting the whole range of EW systems
JSC «KB Radar» – Managing Company of «Radar Systems» Holding is constantly working on development of EW systems that provide effective solutions for electronic jamming and radio monitoring in modern conditions.

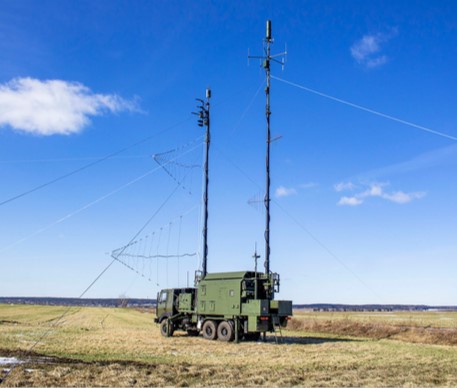

One of JSC «KB Radar» key developments in the field of counter radio communication systems is Groza-6 VHF jamming station.
Groza-6 enables detection, direction finding, positioning and radio jamming of ground and air communication channels in VHF band. It works effectively both at fixed frequencies and in conditions of software frequency hopping.
Key advantages:
wide frequency range – from 30 to 6000 MHz;
maximum range:
- up to 40 km for ground communication lines;
- up to 200 km for aviation channels.
automatic positioning of radio emission sources with display on a digital terrain map;
flexible operation:
- autonomous mode;
- paired operation (“master-slave”);
- integration into Voronovo system under control of Berezina command post
multi-channel jamming – using a number of independent jamming transmitters and possibility to simultaneously jam multiple communication lines.
Purga HF jamming station is designed to detect, position and jam ground and airborne radio communication lines in shortwave (HF) band. It effectively counteracts radio communication lines both at fixed frequencies and with software-controlled frequency hopping, emitting interference on surface and space waves.
Key advantages:
long range:
- radio jamming of surface wave communication lines – up to 60 km;
- radio jamming of space wave communication lines – up to 2000 km;
automatic positioning of radio emission sources with display on a digital terrain map;
flexibility operation:
- autonomous operation;
- paired operation (“master-slave”);
- integration into Voronovo system under control of Berezina command post.
Another system by JSC «KB Radar» is Berezina EW and radio monitoring control station, which is designed to control radio jamming stations, jamming transmitters, and radio monitoring stations in HF and VHF bands, as well as for automated data exchange with a higher-level control station.
Advantages of Berezina control center:
- wide range of frequencies of controlled jamming and radio monitoring stations – from 1.5 MHz to 6000 MHz;
- scalability – simultaneous control of 12 jamming and radio monitoring stations;
- intelligent data processing – collection, analysis, and archiving of information about radio emissions from subordinate jamming and radio monitoring stations;
- automated target allocation and output of target designations to subordinate jamming stations;
- tactical interface – visualization of the situation on a digital terrain map;
- automated data exchange with a similar control post performing the functions of a subordinate or superior control post.
Berezina EW and radio monitoring control post is a modern command post that provides a high degree of automation of EW operations. Berezina station significantly increases the speed of response and the effectiveness of jamming enemy radio links.
Voronovo system is designed to solve the tasks of integrated use of radio monitoring and EW systems, as well as to ensure coordinated counteraction to various types of targets.
