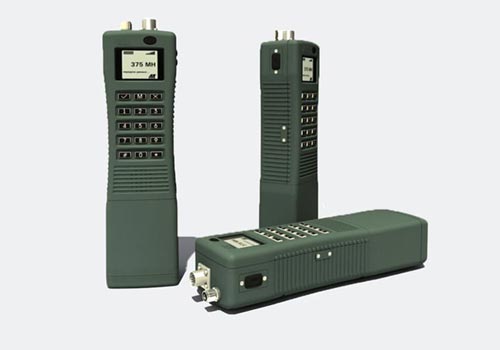

Multirange multifunctional software-defined radio station

Scope of application:
- personnel of the Armed Forces;
- equipping of military observation and intelligence units, officials of battalion (division) command levels, companies (batteries) and platoons.

Main functions:
Working hours:
- two-frequency simplex;
- pseudo-random tuning of the working frequency;
- transmission of voice information and data.
Software-defined radio interface.
Graphical user interface.
Compatibility with the radio station “Rapsodia”.
Compatibility with analog radio stations of the old park.

Specifications of the radio station
Frequency range: 30-512 MHz
Sensitivity of the receiver, not worse: 1 mkW
Output power, no more: 5 W
Data transfer rate: to 19,6 kBit/s
Modulation type: FM, C4FM
Radio interfaces: analog, packet radio communication at a fixed frequency, packet radio communication with FHSS, АRСО25
Vocoder: IMBE 4800 bps
Interfaces: RS 485, USB 2/0
Operating temperature range: from -400С to +550С
Range of stable communication: 8 km
