“Marker” range-difference system for location of air objects

“Marker” range-difference system for location of air objects

“Marker” system is designated for detection, positioning and individual recognition of aerial civil and military objects by their IFF/SIF on-board transponder signals by range-difference method.

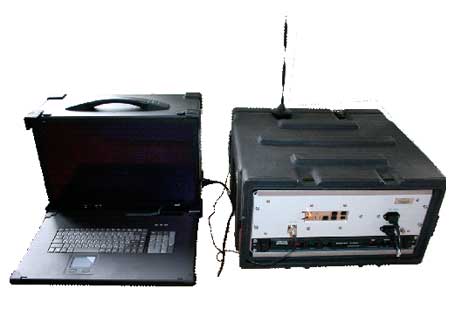

“Marker” range-difference system for location of air objects

Main technical characteristics

No

Parameter

Value

1

Received signals’ frequency, MHz

1090

2

Synchronization of peripheral stations

by GPS



3

Communication between the main and peripheral stations

Ethernet (fibreoptics), wireless network

4

Air object positioning error

maximum 1 % of the air object range, depends on system topology

5

Detection range for 10 km altitude of air objects (provided there is line-of-sight between the four peripheral stations’ antennas and the air object)

350 km

6

Detection range for 1 km altitude of air objects (provided there is line-of-sight between the four peripheral stations’ antennas and the air objects)

100 km

7

Individual air object recognition

by air object transponder signals, w/o decoding in «S» mode

8

Possibility of obtaining semantic information



in «A, С, S» modes

9

Positioning military air objects through multilateration (provided there is line-of-sight between the four peripheral stations’ antennas and the air object)

in «1, 2, 3, 4» IFF/SIF modes

10

Positioning civil air objects through multilateration (provided there is line-of-sight between the four peripheral stations’ antennas and the air object)

in «А, С, S»

IFF/SIF modes

11

Design version

Transportable
